Malaparamba apartment

‘Each new situation requires a new architecture’ - Jean Nouvel.

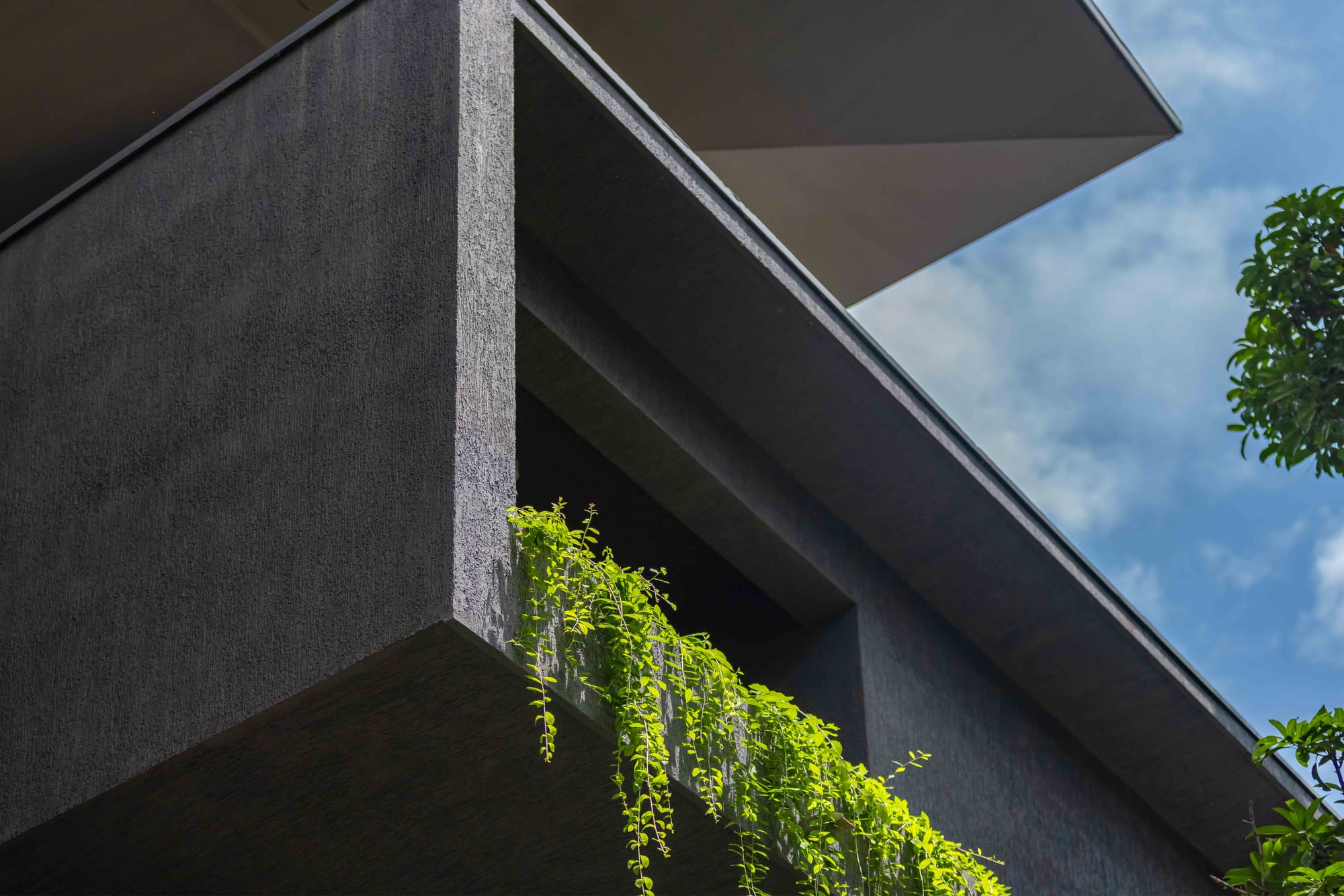

This project is designed in a relatively small plot for designing an apartment. The apartment mainly takes shape by retaining the existing tree present at the site, as a result, there is a huge cantilever slab on the 2nd floor.

• Total built area: 7103 sq.ft
• Site area: 9.9 cents
• Type of structure: Framed structure
• Roof type: Steel truss roof with solar panels
• Basic Finishes:

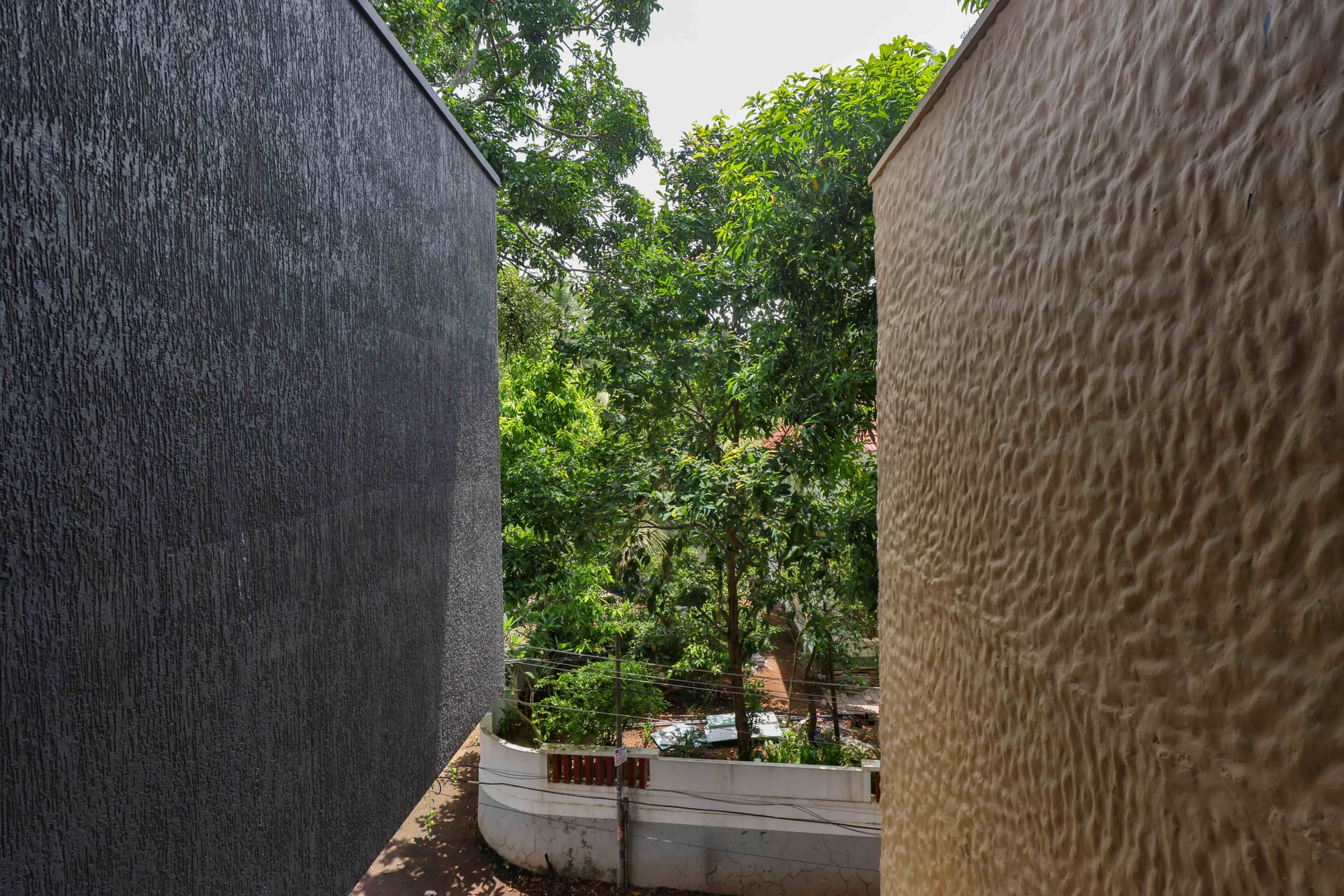

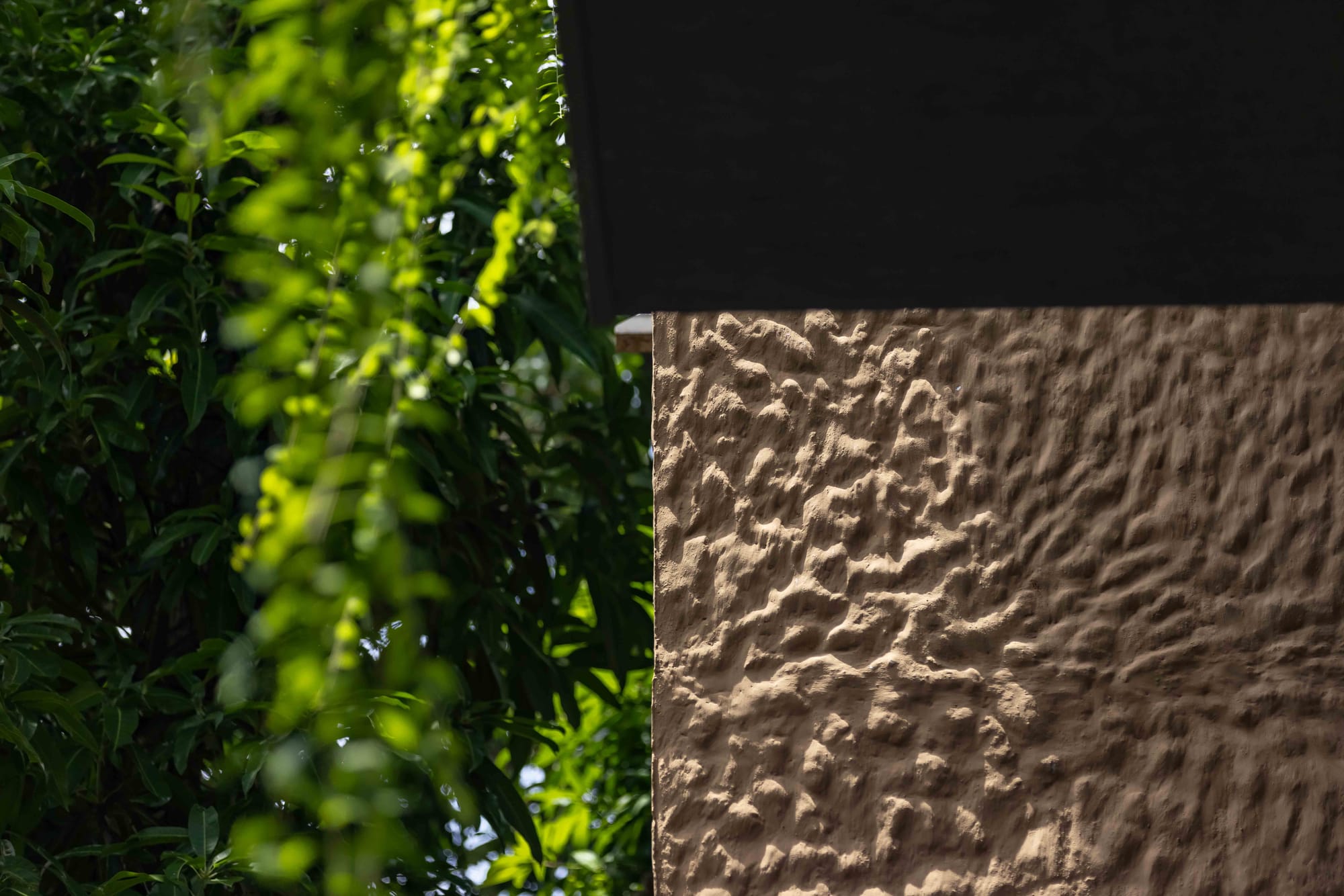

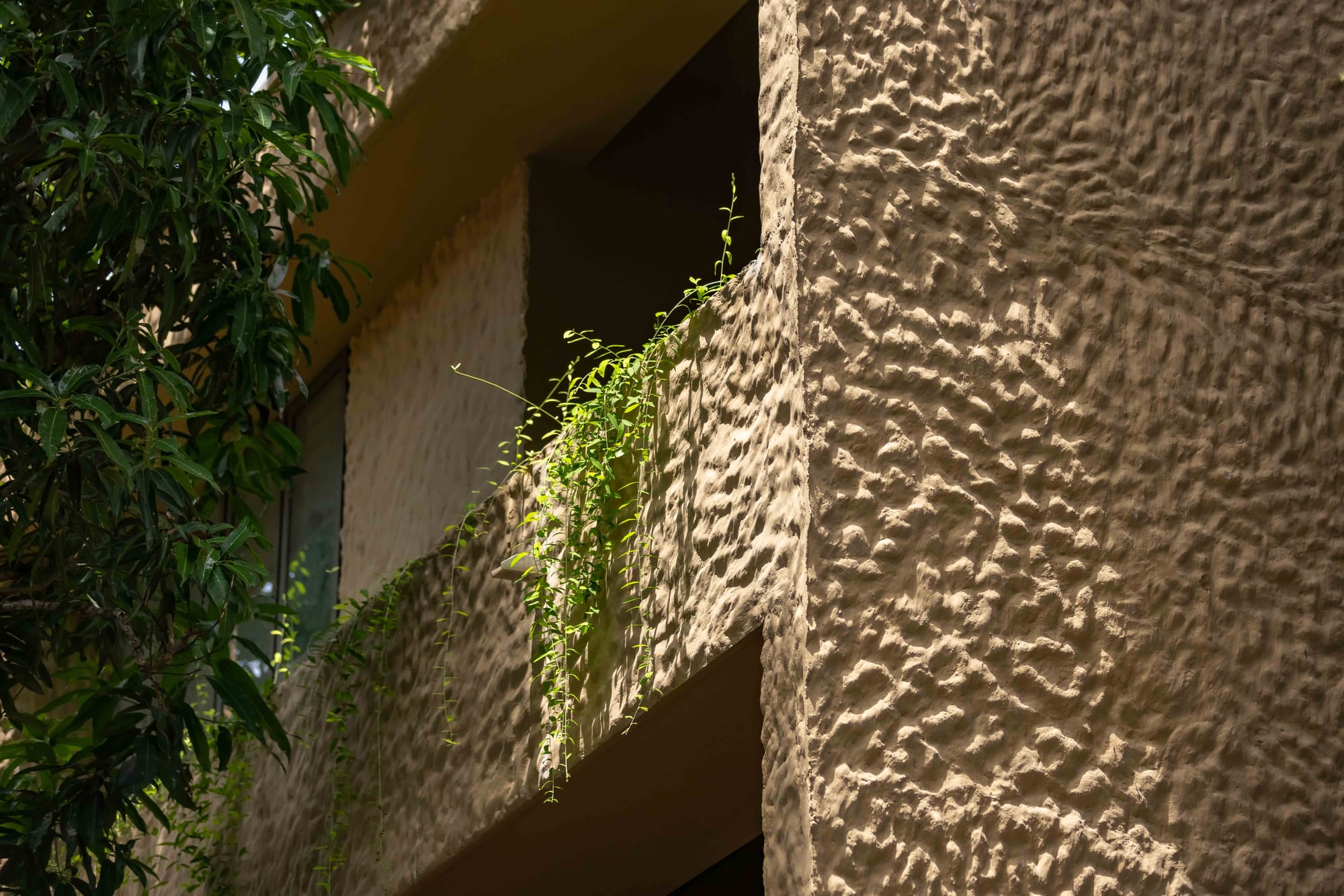

  • Rough textured finish external walls
  • Leather finish Kota stone flooring
  • Off white Oxide walls
  • Exposed R.C.C ceilings

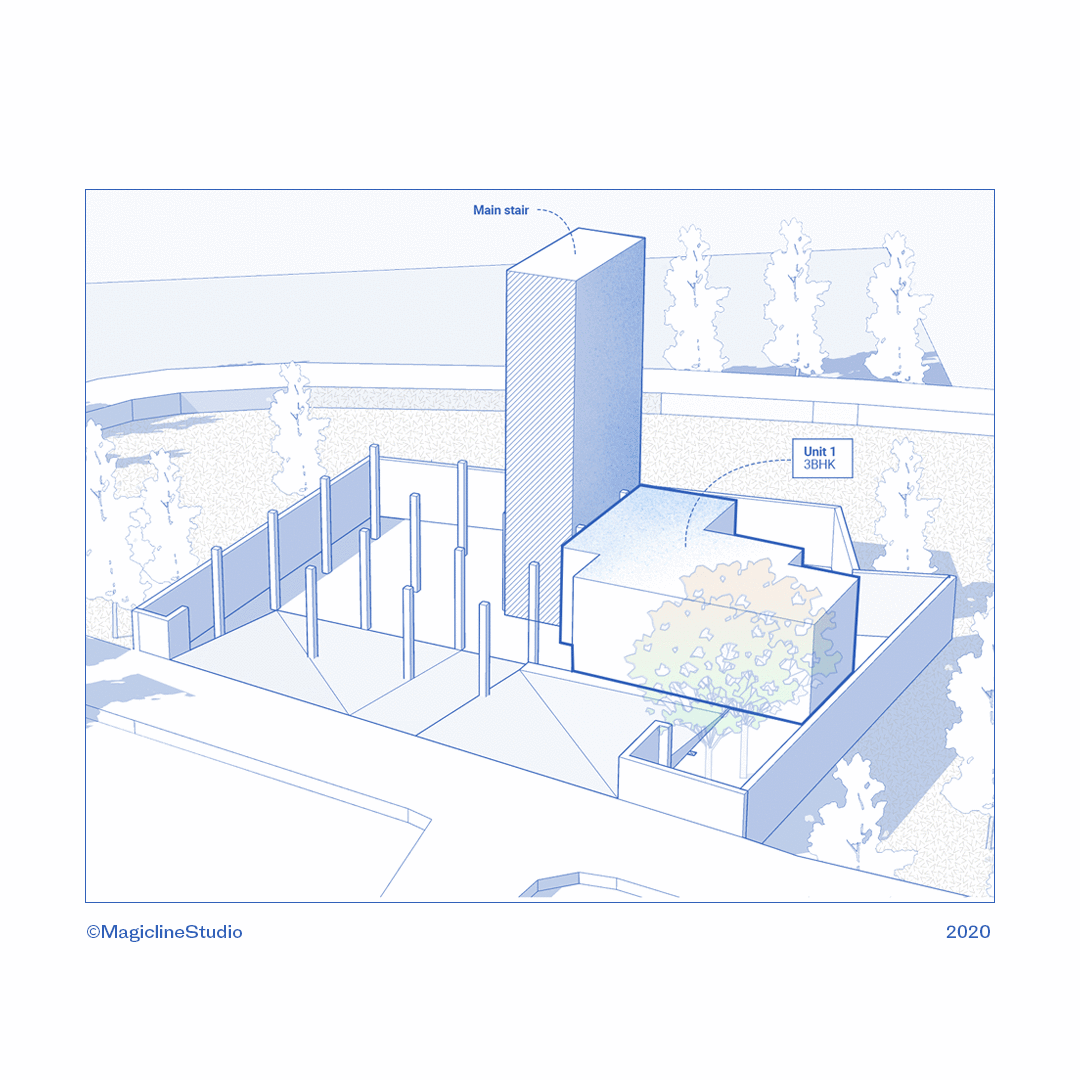

Design process

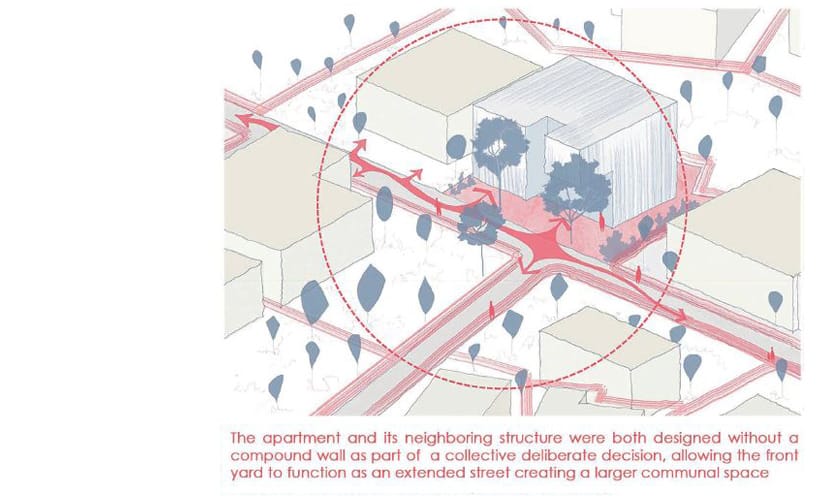

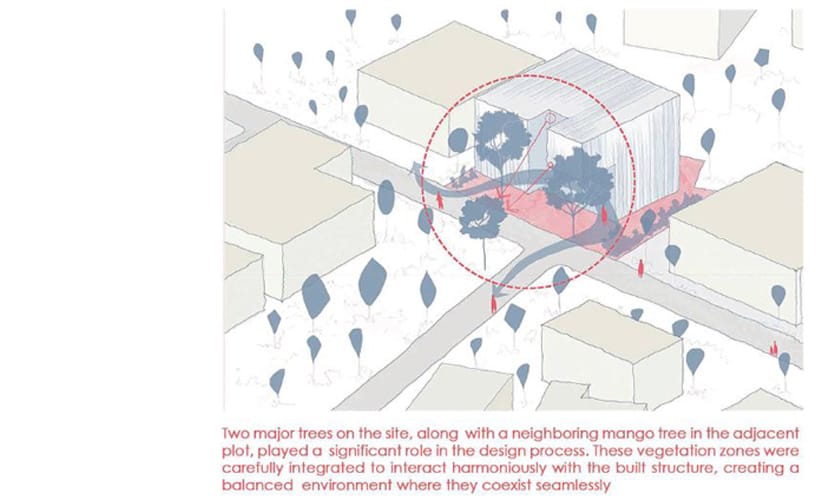

Analysis

Ground floor plan

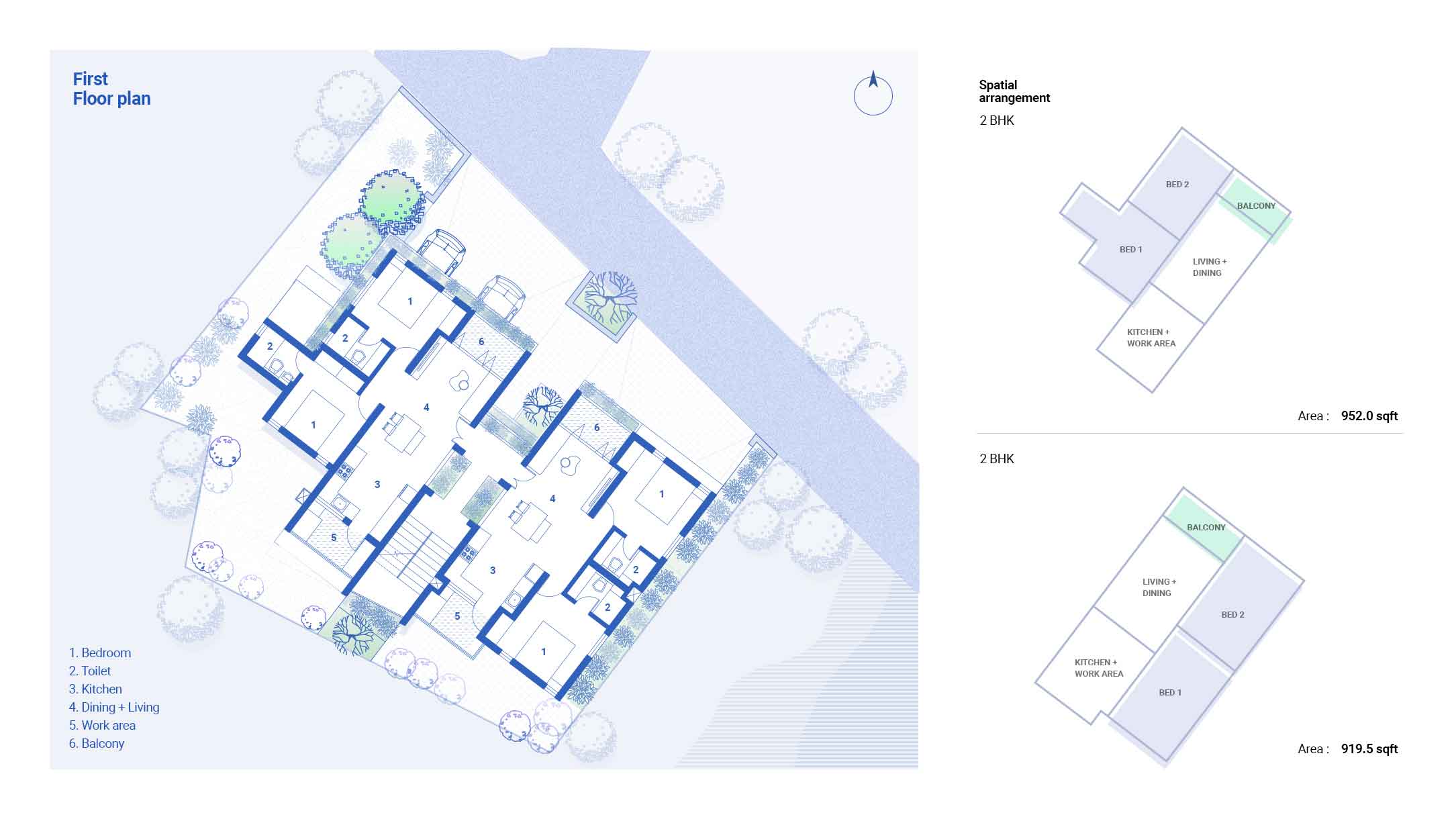

First floor plan

Second floor plan

Terrace canopy is designed to harvest around 13kw solar and rainwater that is channeled to underground tank

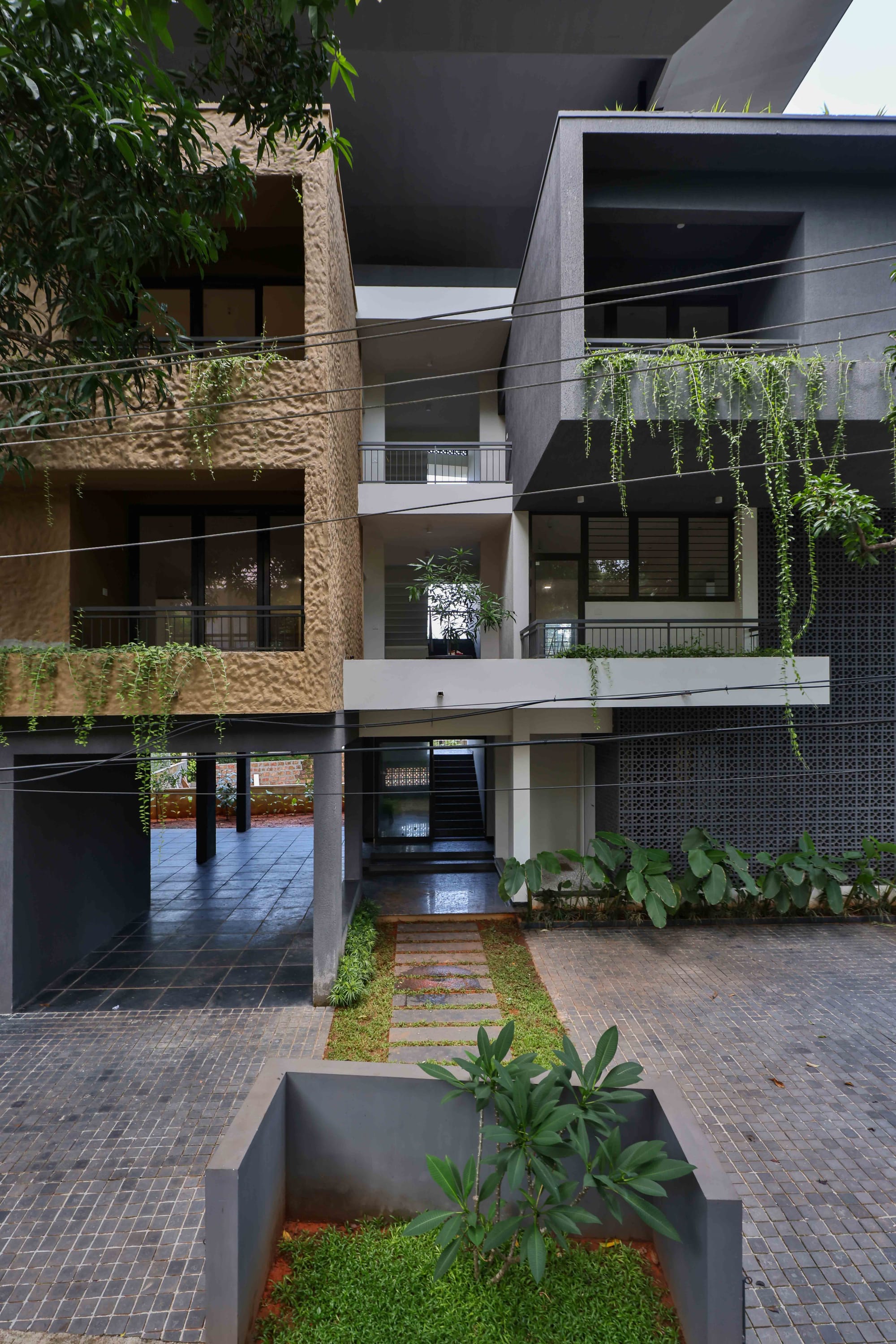

Front elevation

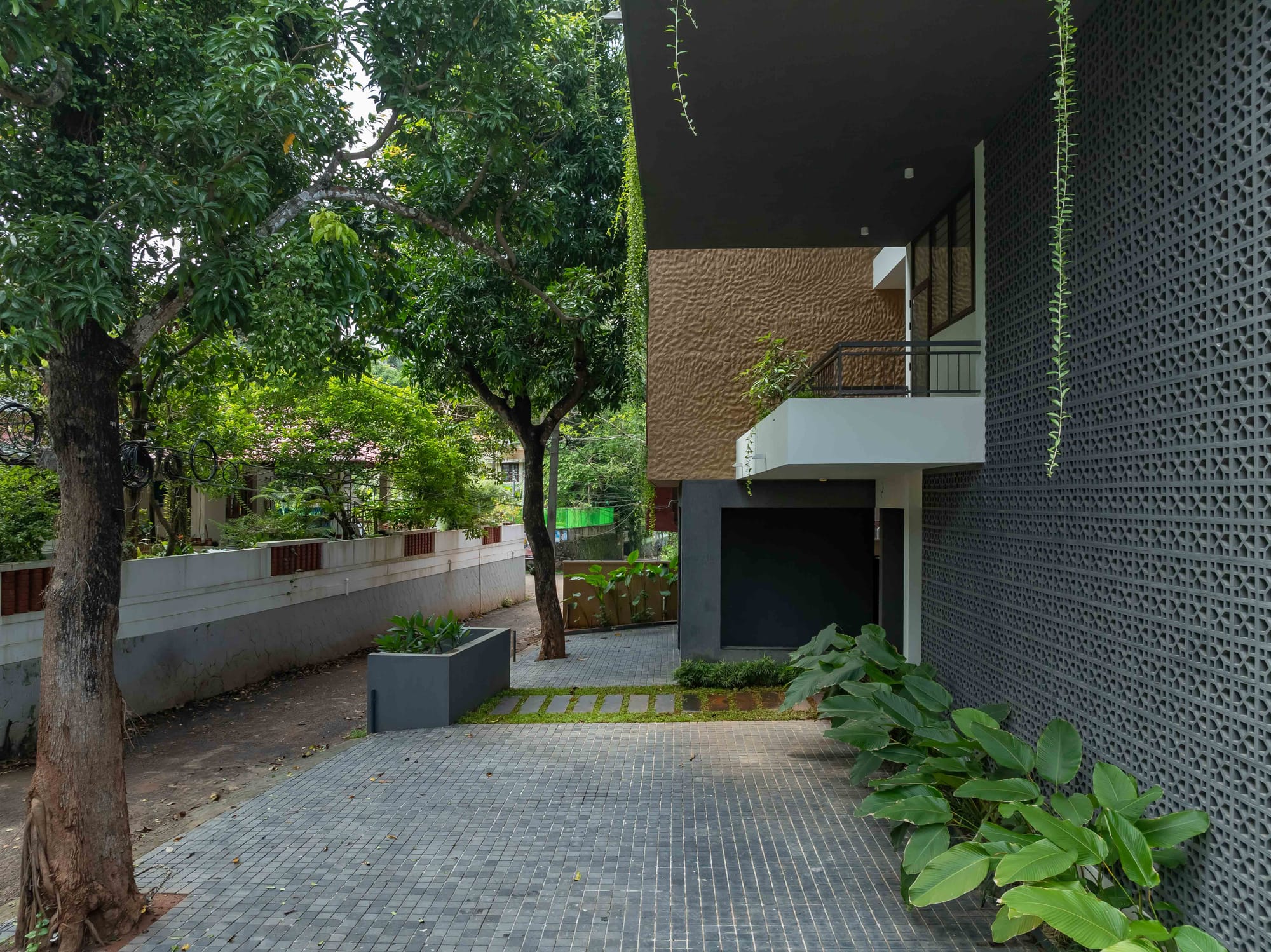

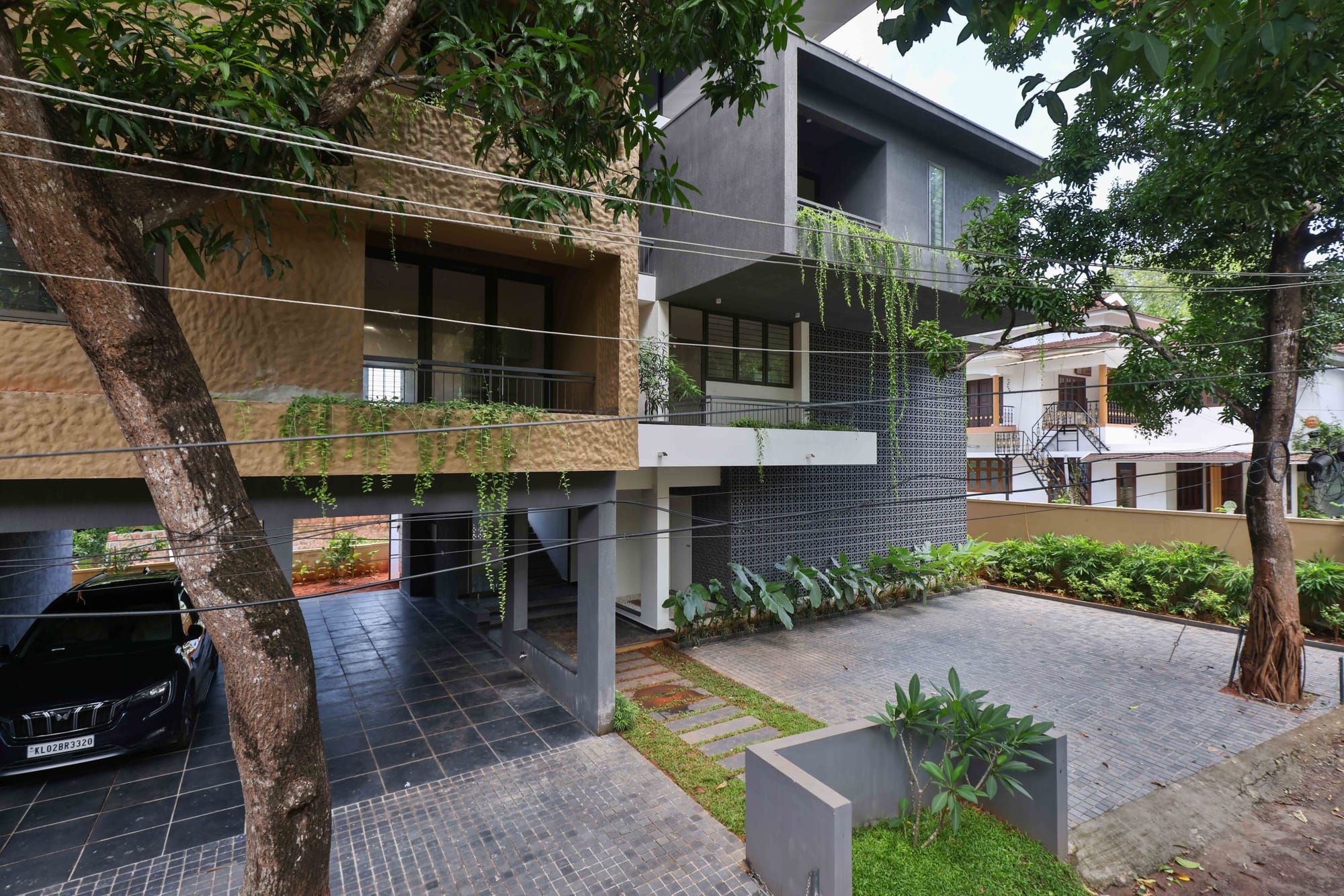

Entrance

Study model
